High Strength Powder Coated Aluminum Profile For Windows And Doors

Name: High Strength Powder Coated Aluminum Profile For Windows And Doors
Brand: Huilv
Price: 1 USD

Place of Origin : China

Model Number : HL-50

Brand Name : Huilv

Certification : ISO9001:2008/ ISO14001:2004/ OHSAS 18001:1999/PPG/TUV/CE

MOQ : 300Kg

Packaging Details : Standard packing: *Transparent protection film, or cotton paper to protect each piece. *Transparent PE film outside each bundle/or Kraft paper. *Small profile to be inserted into bigger ones to save space EP paper inside for each piece then shrink pape

Delivery Time : Within 5-15 working days

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000Tons/Year

Grade : 6000 Series

Temper : T3-T8

Application : Door & Window

Shape : Square

Alloy Or Not : Is Alloy

Product name : High Strength Powder Coated Aluminum Profile For Windows And Doors

Surface treatment : powder coating, anodizing, electrophoresis, wood grain transfer

Lead Time : 15-20 Working Days

Color : Customized Color

Length : Custom Length

Type : OEM Aluminum Extrusions Profiles

MOQ : 500KG

Material : Alloy 6063/6061/6005/6060/6463/6082 T5/T6

Payment term : TT, LC, Negotiate

Package Type : Protective film, EPE, Shrink film, Kraft paper, Wooden frame and so on as your needs for aluminum profile prices in china.

Contact Now

High Strength Powder Coated Aluminum Profile For Windows And Doors

Chemical Composition:

Alloy	Chemical Composition
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others	Al(Min)
6005	0.6-0.9	0.35	0.1	0.1	0.4-0.6	0.1	0.1	0.1	0.15	rest
6063	0.2-0.6	0.35	0.1	0.1	0.45-0.9	0.1	0.1	0.1	0.15	rest
6061	0.4-0.8	0.7	0.15-0.4	0.15	0.8-1.2	0.04-0.35	0.25	0.15	0.15	rest

Mechanical Properties

Alloy	Temper	Thickness	T.S.	Y.S	ELOG.	Hardness
Alloy	Temper	Thickness	σb (MPa)	σ0.2 (MPa)	δ%	HV	HW
6005	T5	≥ 0.8	≥260	≥240	≥10	≥85	≥15
6063	T4	≥ 0.8	≥130	≥65	≥12	-	-
	T5	≥ 0.8	≥160	≥110	≥8	≥58	≥8
	T6	≥ 0.8	≥205	≥180	≥8	≥65	≥10
6061	T4	≥ 0.8	≥180	≥110	≥16	≥65	≥10
6061	T6	≥ 0.8	≥265	≥245	≥8	≥85	≥15.5

Product Description:

Specifications

1.Aluminium profiles 6000 series
2.ISO9001,14001,EN,SASO, etc
3.Manufacture,Competitive price,high quality.
4.Max size:350mm
PRODUCTION CAPACITY: 50,000 TONS PER YEAR
CERFICATE: ISO9001 ISO14001 EN SASO, etc
ALUMINIUM PROFILE SURFACE TREATMENT:
1.MILL FINISH
2.ANODIZING
3.SANDING BLASTING
4.POWDER COATING
5.ELECTROPHORESIS
6.WOODEN GRAIN
7.THERMAL BREAK PROFILES
PRESS MACHINE: 630 tons to 2500 tons
MINIMUM QUANTITY: 1 TON
PACKING:HEATED SHRINK FILM OR Wrapping paper
FOB PORT: SHANGHAI, WUHU, NANJING
PAYMENT WAY:T/T or L/C
TEMPER: T5,T6,etc.
ALLOY:6063,6061,6060,6082,etc.
QUALITY STANDARD:GB/T 5237.1-2008

Material	6000series
Temper	T3-T8
Thickness	General profiles thickness: 0.8 - 5.0 mm;
	Anodized protection thickness: 8 - 25 um;
	Powder coating color thickness: 40 - 120 um.
Length	According to your requirement,Max 6.4 meters
Shape	Square, Rectangle, Round, Flat, Angle, T profile etc.
Surface Treatment	Anodized,powder coated,sand blasted, polishing,mill finish,etc
Color	silver, champagne, black, white, mirror, customized request available.
Application	Automated machinery and equipment, electronic machinery industry, production lines, assembly line workbench, screens, industrial fences and various frames, display stands, shelves, mechanical dust seals, etc.
Optional Machining	Cutting,drilling,chamfering,stamping,CNC milling,etc
OEM service	Available for aluminum profiles
Characteristics	Strong, stylish, durable, corrosion-resistant.
Packing Details	Inside : packed with plastic film to protect each piece.
	Outside: Wrap to be bundles by waterproof craft paper or EPE film.
	Customized as customers request is available.

Product Tags:

standard aluminum extrusion profiles

extruded aluminum t bar

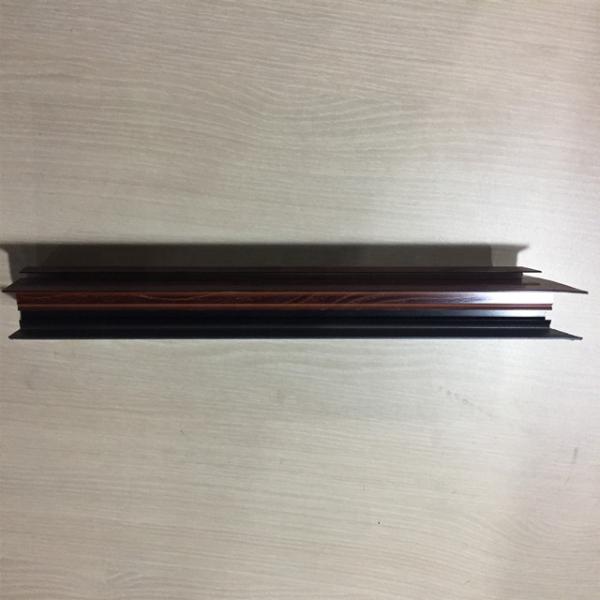

High Strength Powder Coated Aluminum Profile For Windows And Doors Images
